Getting summary / underlying data

Summary and underlying data can be retrieved as list of dicts from tableau dashboards using the get_underlying_data() and get_summary_data() methods of a Worksheet object.

from ._anvil_designer import MainTemplate
from anvil import *
from trexjacket.api import get_dashboard

class Main(MainTemplate):
  def __init__(self, **properties):
    self.init_components(**properties)
    self.dashboard = get_dashboard()
    self.chart = self.dashboard.get_worksheet('Viz')
    print(self.chart.get_underlying_data())
    print(self.chart.get_summary_data())

  def primary_button_1_click(self, **event_args):
    """This method is called when the button is clicked"""
    print(self.chart.get_underlying_data())  # note that this is a lot of output
    print(self.chart.get_summary_data())
    self.text_area_1.text = self.chart.get_summary_data()

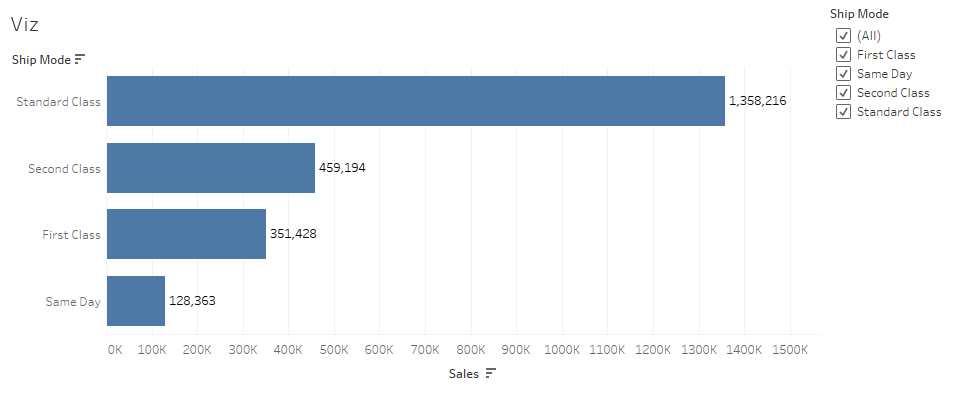

After reloading the extension and clicking the “Show data” button, you should see this output in the Anvil “Tableau” pane (screenshot of the Viz worksheet for reference).

# printed output from .get_underlying_data()
# and .get_summary_data()

[
  ...
  {'Ship Mode': 'Second Class', 'Sales': 120.768},
  {'Ship Mode': 'First Class', 'Sales': 25.92},
  {'Ship Mode': 'First Class', 'Sales': 34.65000000000001},
  ...
]

[
  {'Ship Mode': 'Same Day', 'SUM(Sales)': 128363.125},
  {'Ship Mode': 'First Class', 'SUM(Sales)': 351428.4229000002},
  {'Ship Mode': 'Second Class', 'SUM(Sales)': 459193.5693999998},
  {'Ship Mode': 'Standard Class', 'SUM(Sales)': 1358215.742999983}
]

Note

Both get_underlying_data() and get_summary_data() return data with the filters applied to them.

This gif shows binding the result of get_summary_data() to the text property of a Text Area component

If you aren’t familiar with how to bind an Anvil component to a Tableau component, see Bind Anvil components to Tableau filters and parameters.

Click here to clone the Anvil App

And here for the Tableau workbook
